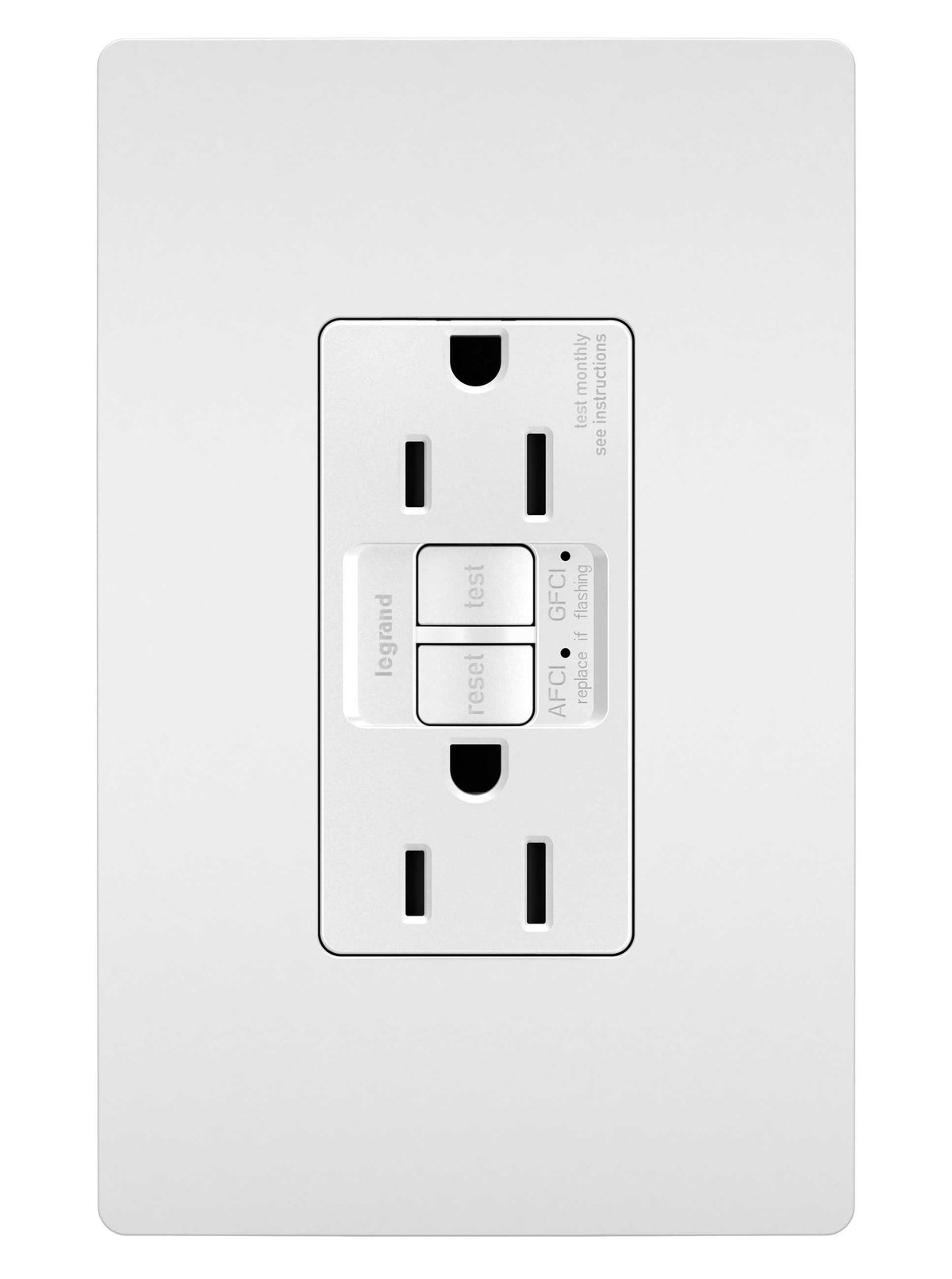

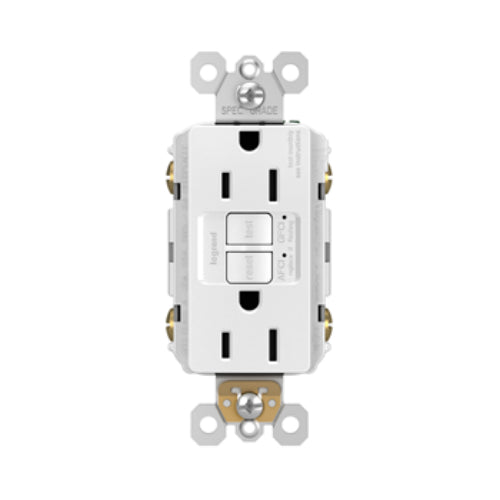

Legrand AFGF152TRWCCV4 Radiant Dual-Function AFCI/GFCI Receptacle, 15A
Legrand AFGF152TRWCCV4 Radiant Dual-Function AFCI/GFCI Receptacle, 15A, White
$47.12
SKU: 12353550
MFG: AFGF152TRWCCV4
Description
Legrand Radiant Collection Dual-Function AFCI/GFCI Receptacles are the latest innovation in electrical safety, and a code-approved alternative to dual-function AFCI/GFCI breakers. Designed to protect against electrical fires caused by arc faults and injury due to electrical shock, these new devices are compliant with NEC AFCI and GFCI requirements in kitchens and laundry areas for new construction, circuit modifications/extensions and replacement receptacles.
- Color: White
- FSUL Listed (Federal Specification WC596)
- Feed-through protection.
- Two back-wire holes per termination add wiring flexibility, eliminate pigtailing and save box space.
- High-impact-resistant, thermoplastic construction for superior strength and durability.
- Tamper-Resistant automatic shutter system prevents young children form inserting common household objects. Black shutters essentially "disappear" into the background for an invisible effect preferred by end users.
- Ground terminal back-wire for fast installation.
- Patented SafeLock Protection - if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected.
- Two indicator lights, one for GFCI and one for AFCI. Easy to distinguish between trip caused by arc fault and trip caused by ground fault. GFCI indicator light flashes if device fails the self-test, signaling that the GFCI should be replaced.
- Auto-ground clip assures a positive ground to metal box.
- Prevents line-load miswire - no power to the face or downstream receptacles if wired incorrectly
- Wall Plate not included.
Specifications:
- Amps: 15A
- NEMA Configuration Number: 5-15R
- Volts: 125
- cULus: Yes
- Federal Spec: Yes
- UL Standard: UL943, UL1699
Specifications
MFR:
AFGF152TRWCCV4
SKU:
12353550
UPC:
785007134803
Brand:
Legrand
Length:
3
Width:
3
Height:
5
Attachment:
