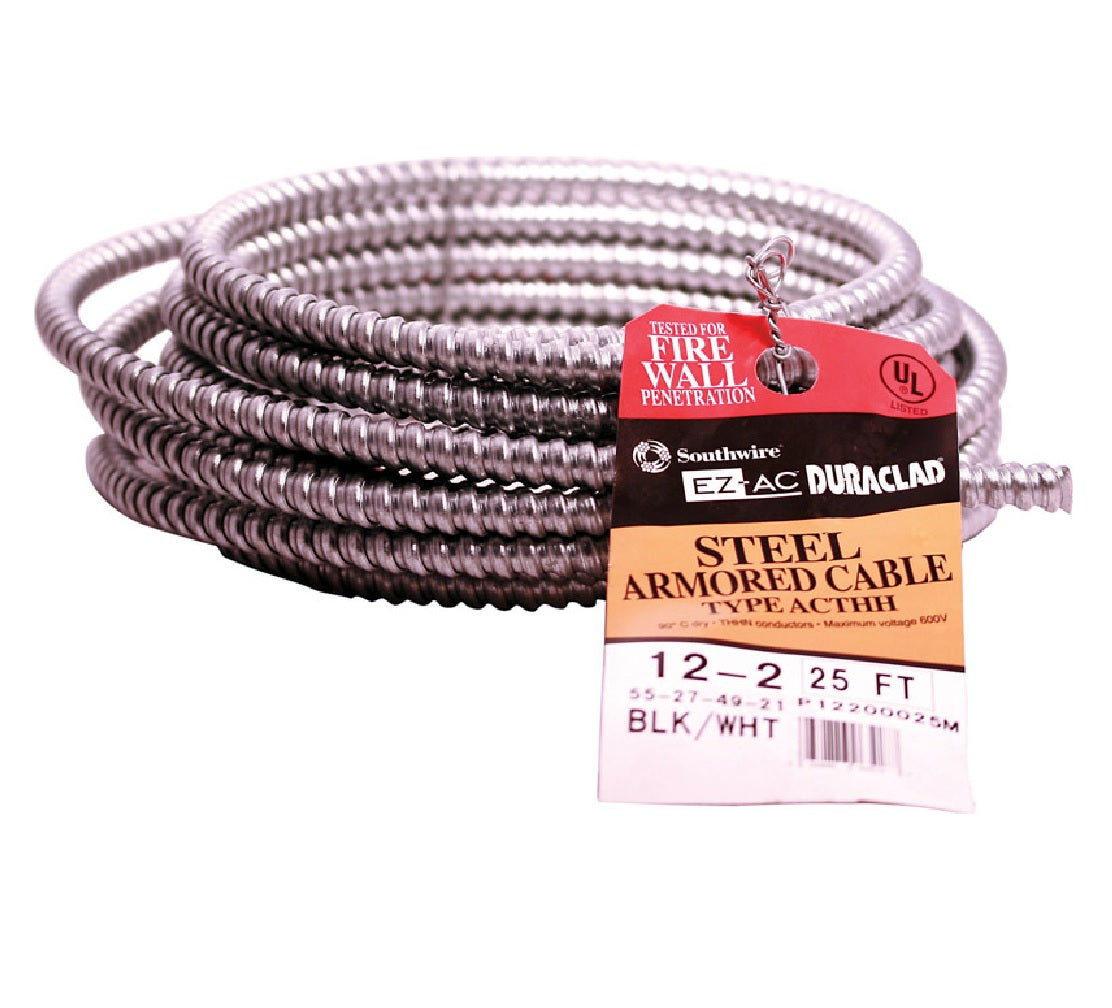

Southwire 55274921 Cable Ac 12-2 Alflex Thhn Bond Wire With Steel Armo
Southwire 55274921 Cable Ac 12-2 Alflex Thhn Bond Wire With Steel Armor, 25 Feet
$28.20
SKU: 11763267
MFG: 55274921
Description
Southwire 12/2 steel armored cable AC-90 steel armored cable is black striped color-coded. Flexible and efficient, no couplings or elbows needed. Copper conductors are THHN 90 degree Celsius rated.
Highlights:
- Wire Length: 25 feet
- Cable Size: 12 AWG
- Conductor Insulation: THHN/THWN
- Conductor Material: Copper
- Current Rating: 20 A
- Steel Armor
- Number of Conductors: 2
- Operating Temperature: 90 deg C
- Sheath Diameter: 0475 inch
- Stranded/ Solid: Stranded
- Type: Metal Clad
- Voltage Rating: 600 V
- Fished or embedded in plaster
- Concealed or exposed installations
- Installation in cable tray and approved raceways
- Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) and 645.5(D)(2)
Specifications
MFR:
55274921
SKU:
11763267
UPC:
032886065187
Brand:
Southwire
Length:
9
Width:
9
Height:
2
Attachment:
