SMV

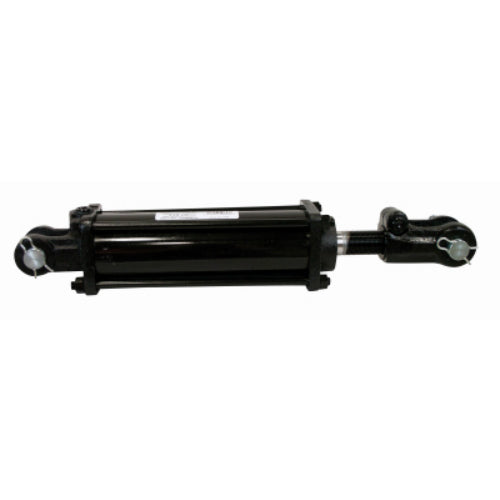

SMV 2.5X16-NON-ASAE Double Acting Tie Rod Hydraulic Cylinder, 2.5" x 16"
Item # 12335919Mfr # 2.5X16-NON-ASAEUPC 012947008964
$158.86
Product Overview
SMV Hydraulic Cylinder is 100% QC tested at factory level. 2500 PSI working pressure Dual Acting cylinder. 2.5" bore diameter, 16" stroke, rod diameter 1-1/8". Retracted length 26-1/4". O-ring static seal and piston seal is 2 back up rings + O-ring. NPT ports. Black finish includes pin and clips.
- Double acting
- Tie rod hydraulic cylinder
- 2.5" bore diameter
- 16" stroke
- Rod diameter 1-1/8"
- 2,500 lb PSI maximum pressure
- Retracted length 26-1/4"
- O-ring static seal and piston seal is 2 back up rings + O-ring
- NPT ports
- Black finish includes pin and clips.
Specifications
- Size
- 2.5" x 16"
- Brand
- SMV
- Mfr number
- 2.5X16-NON-ASAE
- Item number
- 12335919
- UPC
- 012947008964
