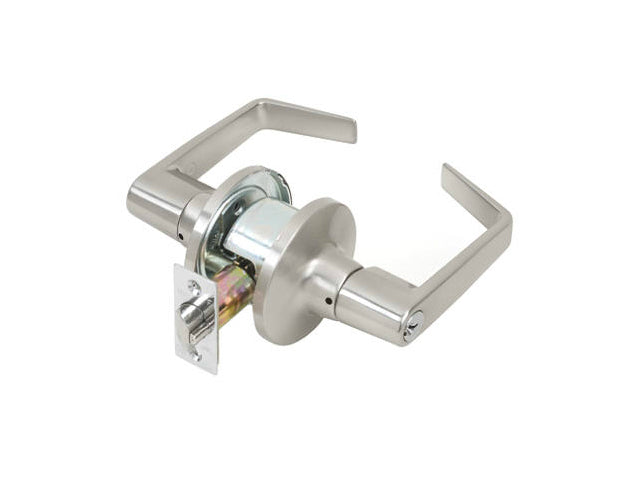

Tell CL100619 Light Duty Commercial Store Room Lever, Tubular Grade 2
Tell CL100619 Light Duty Commercial Store Room Lever, Tubular Grade 2
$53.46
SKU: 10885284
MFG: CL100619
Description
Complies with ANSI A156.2, Series 4000, Grade 2, 400,000 cycles, UL listed for 3 hour fire door ANSI A117.1 American Disabilities Act (ADA). Tubular, steel - coated with zinc dichromate (corrosion resistance). Lever is non-handed, solid cast. Adjustable backset 2-3/4" or 2-3/8". 2-1/8" diameter for lever, 1" diameter for latch bolt. Fits standard 161 door prep. Contains two silver nickel keys.
- Finish: US26D Satin Chrome
- Performance: Complies with ANSI A156.2, Series 4000, Grade 2, 400,000 cycles, UL listed for 3 hour fire door ANSI A117.1 American Disabilities Act (ADA)
- Chassis: Tubular, steel - coated with zinc dichromate (corrosion resistance)
- Lever: Non-handed, solid cast
- Latch: 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel), 1/2" throw
- Backset: Adjustable 2-3/4" or 2-3/8"
- Strike: T Strike 1-1/8" x 2-3/4" x 3/32"
- Door Range: 1-3/8" to 1-3/4" thick
- Door Preparation: 2-1/8" diameter for lever, 1" diameter for latch bolt. Fits standard 161 door prep.
- Keys: Two nickel silver.
Specifications
MFR:
CL100619
SKU:
10885284
UPC:
737874401311
Brand:
Tell
Length:
13
Width:
4
Height:
9
