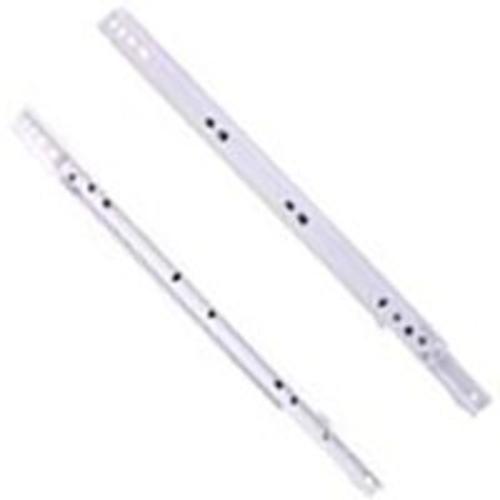

Knape & Vogt 1284PWH400 Euro Drawer Slide 400mm, White
Knape & Vogt 1284PWH400 Euro Drawer Slide 400mm, White
$6.78
SKU: 11850270
MFG: 1284PWH400
Description
Medium-duty slide designed for kitchen cabinet and bathroom vanity applications. Adaptable to frame mounting and 32mm mounting system. Solid stud and captive roller reduces side play. Positive stop, lift-out disconnect, stay-closed design. Adjustment slots on both the drawer member and the cabinet member ease installation. Screws fasten to either side or bottom of drawer. Positive lock-out feature is ideal for pull out work surfaces. Height: 1-9/32". Required Clearance: 1/2" plus 1/32" minus 0 each side. 1" between overall drawer side height and cabinet opening height required for drawer insertion and removal. Packaged with screws and installation instructions.
Highlights:-
- Side Mount - 3/4 Extension.
- 100 Pound Class Load Rating.
- White Finish.
- Poly Pack.
- Size: 400mm.
Specifications
MFR:
1284PWH400
SKU:
11850270
UPC:
029274002503
Brand:
Knape & Vogt
Length:
8
Width:
4
Height:
2
