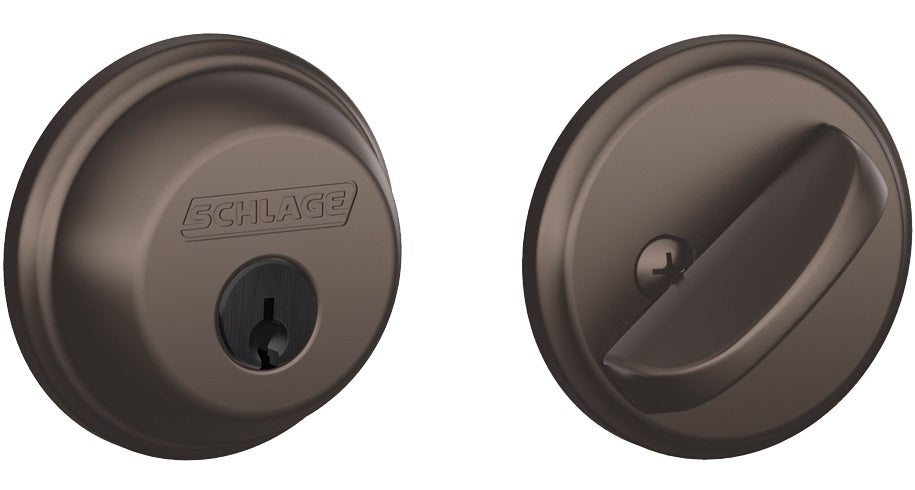

Schlage B60N613 K4 1-Cylinder Deadbolt, Oil Rubbed Bronze
Schlage B60N613 K4 1-Cylinder Deadbolt, Oil Rubbed Bronze
$35.86
SKU: 11801814
MFG: B60N613
Description
Highlights:
- For residential single and multi-family entrance doors
- Deadbolt thrown or retracted by key outside, or by turn unit inside; bolt automatically deadlocks when fully thrown
- 7/8" wrought brass trim ring reinforced with security inserts
- Concealed spin ring rotates to protect against wrenching the cylinder
- Solid steel door frame reinforcer with 3" screws protects against kick-in attack
- Solid, 1 piece design protects against hammer and crowbar prying attacks
- 2-1/2" steel adapter ring, plated to match, provided for accommodating 2-1/8" crossbore
- Hands free installation
Specifications:
- Door Prep: 1-1/2" or 2-1/8" crossbore; 7/8" edge bore; 1" x 2-1/4" latch face
- Door Thickness: 1-3/8" to 1-3/4"
- Faceplate: 1" x 2-1/4"
- Strikes: 1-1/8" x 2-3/4", no lip, with dust box and door frame reinforcer
- Bolt: 7/8" housing and 1" throw with concealed hardened steel roller to prevent cutting or sawing
- ANSI/BHMA: Exceeds A 156.5, 1992 Grade 2 with Grade 1 security features
- Dual option universal: Fits all doors, 2-3/4" or 2-3/8" backset; square corner, round corner, or drive-in preps
- Cylinder: solid brass, 5-pin, tumbler C keyway with nickel silver, pick resistant, spool pins and 2 nickel silver, 5-pin, C section keys
Specifications
MFR:
B60N613
SKU:
11801814
UPC:
043156248384
Brand:
Schlage
Length:
5
Width:
5
Height:
6
