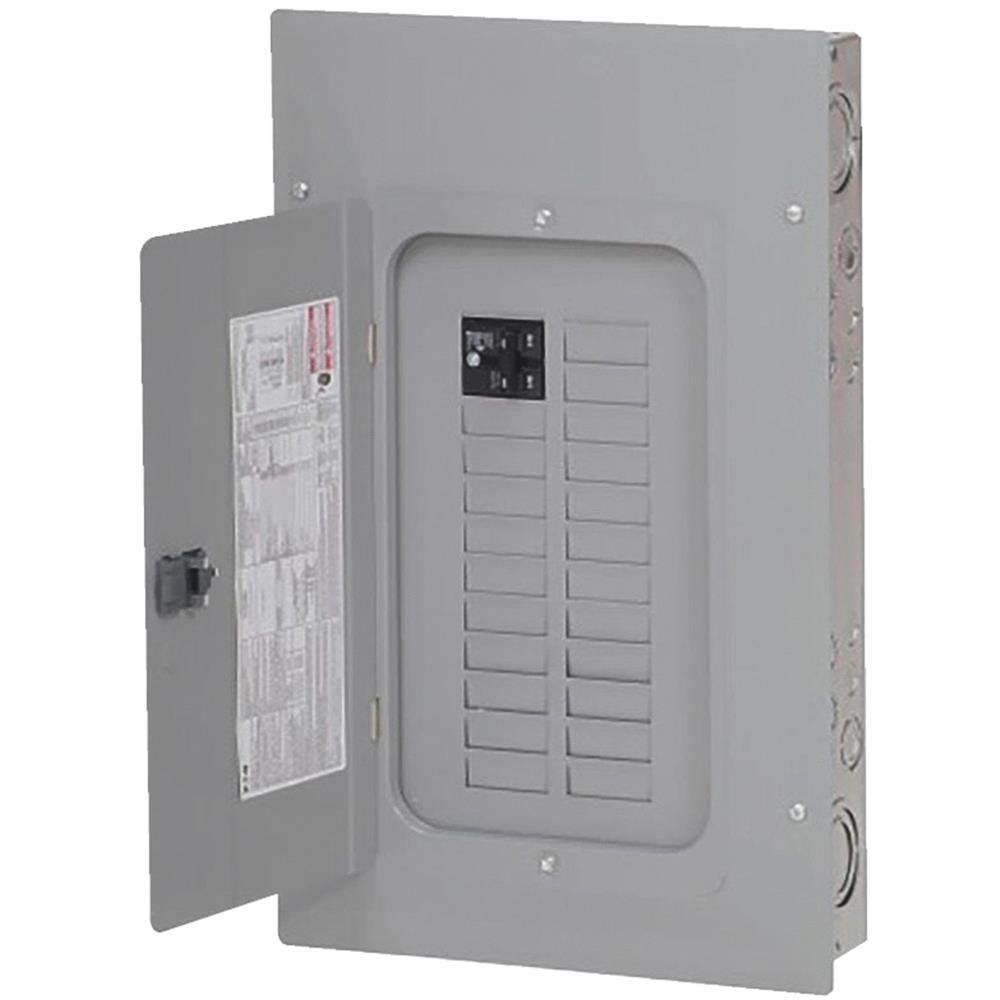

Eaton BRP20B100 Main Breaker Installed Plug On Neutral Load Center, 100A

$117.68

Created with Sketch.
Shipping charges calculated at checkout.
1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 12350058
MFG: BRP20B100

Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

  • Amp: 100
  • Volt: 120/240V
  • 40 circuit
  • 20 spaces
  • 20-phase
  • Indoor – NEMA 1
  • Aluminum bus
  • Interrupt Rating 25 kAIC
  • Plug-on neutral design provides time and labor-savings by eliminating the pigtail
  • Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
  • UL listed.

Specifications

MFR:
BRP20B100
SKU:
12350058
UPC:
786689053154
Brand:
Eaton
Length:
25
Width:
16
Height:
5
Attachment:
