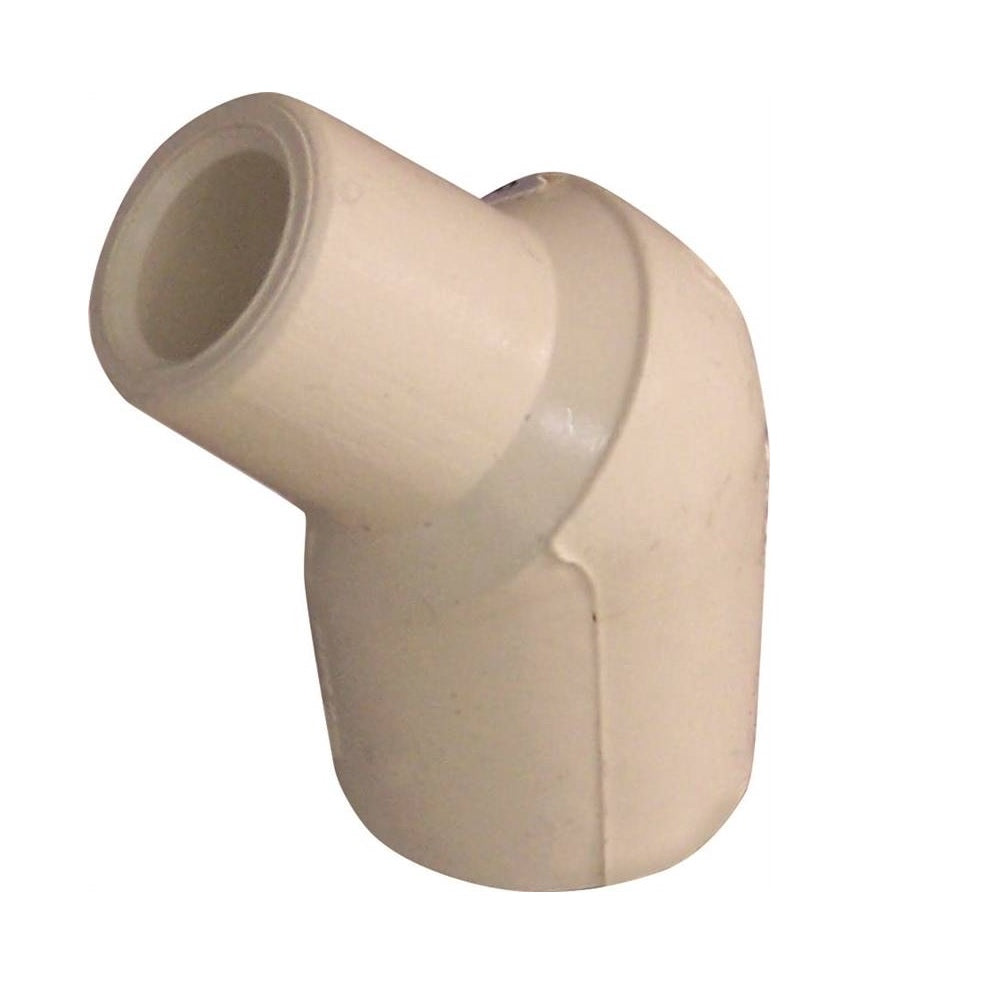

Nibco T00095D Street Elbow, Slip x Spigot
Nibco T00095D Street Elbow, Slip x Spigot
$6.93
SKU: 12490395
MFG: T00095D
Description
Street elbow used on close offsets where very short pieces of CPVC pipe would otherwise have to be used with conventional 45 deg elbows.
Highlights:
- Material: CPVC
- Angle: 45 deg
- End Style: Slip x Spigot
- Size: 3/4 inch
- Working Pressure: 400 psi at 73 deg F, 100 psi at 180 deg F
- Outside diameters are the same as copper tube
- CPVC systems are accepted by all major model building codes
- Weighted average lead content of 0.25%
- A principal use is to offset piping over and around existing piping mounted on flat surfaces such as wall or ceiling
- Used on close offsets where very short pieces of CPVC pipe would otherwise have to be used with conventional 45 deg elbows
- CPVC tubing is rated at 210 deg for water heater relief valve drain applications
Specifications
MFR:
T00095D
SKU:
12490395
UPC:
039923107671
Brand:
Nibco
Length:
7
Width:
7
Height:
2
Attachment:
