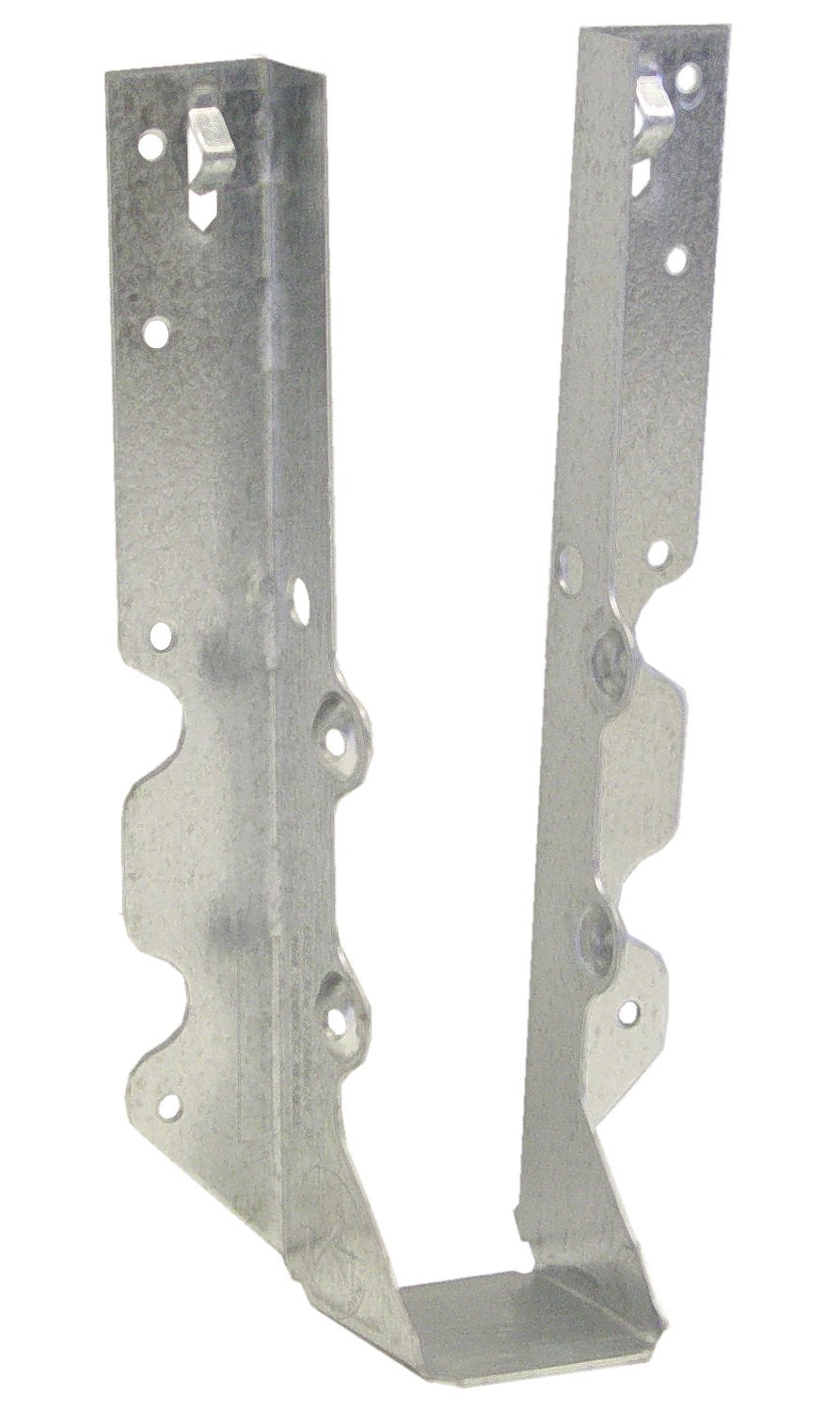

USP Structural Connectors JUS210-TZ Joist Hanger, 2" x 10"

$2.75

Created with Sketch.
Shipping charges calculated at checkout.
50

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 12020190
MFG: JUS210-TZ

Description

Joist nails must be driven at a 30 degree to 45 degree angle through the joist or truss into the header to achieve listed loads. Standard length "double shear" nails must be used to achieve listed load values. Jus-16d sinkers (9 gauge x 3-1/4") may be used where 10d commons are specified with no load reduction.

Highlights:

  • Gauge: 18
  • Size: 2" x 10"
  • Finish: Triple zinc coated
  • Use all specified fasteners
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Specifications

MFR:
JUS210-TZ
SKU:
12020190
UPC:
081942100638
Brand:
Usp Structural Connectors
Length:
5
Width:
4
Height:
2
