Prime-Line N 7530 Bi-Fold Door Hardware Repair Kit
Prime-Line N 7530 Bi-Fold Door Hardware Repair Kit
$11.99
SKU: 12629526
MFG: N 7530
Description
Use these components to replace damaged or missing hardware to restore a bi-fold closet door system to optimal performance. Used on doors 1 to 1-3/8 inch thick and up to 50 lbs.
Highlights:
- Material : Steel

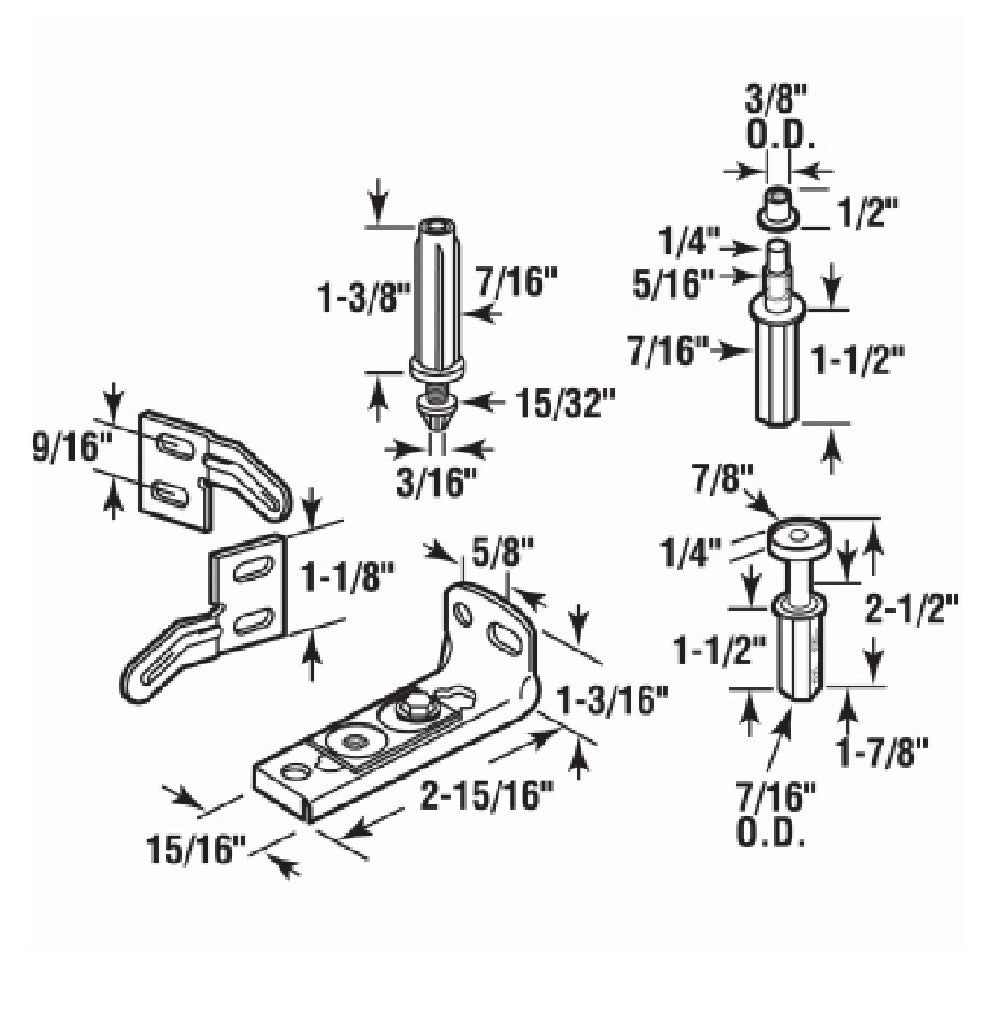

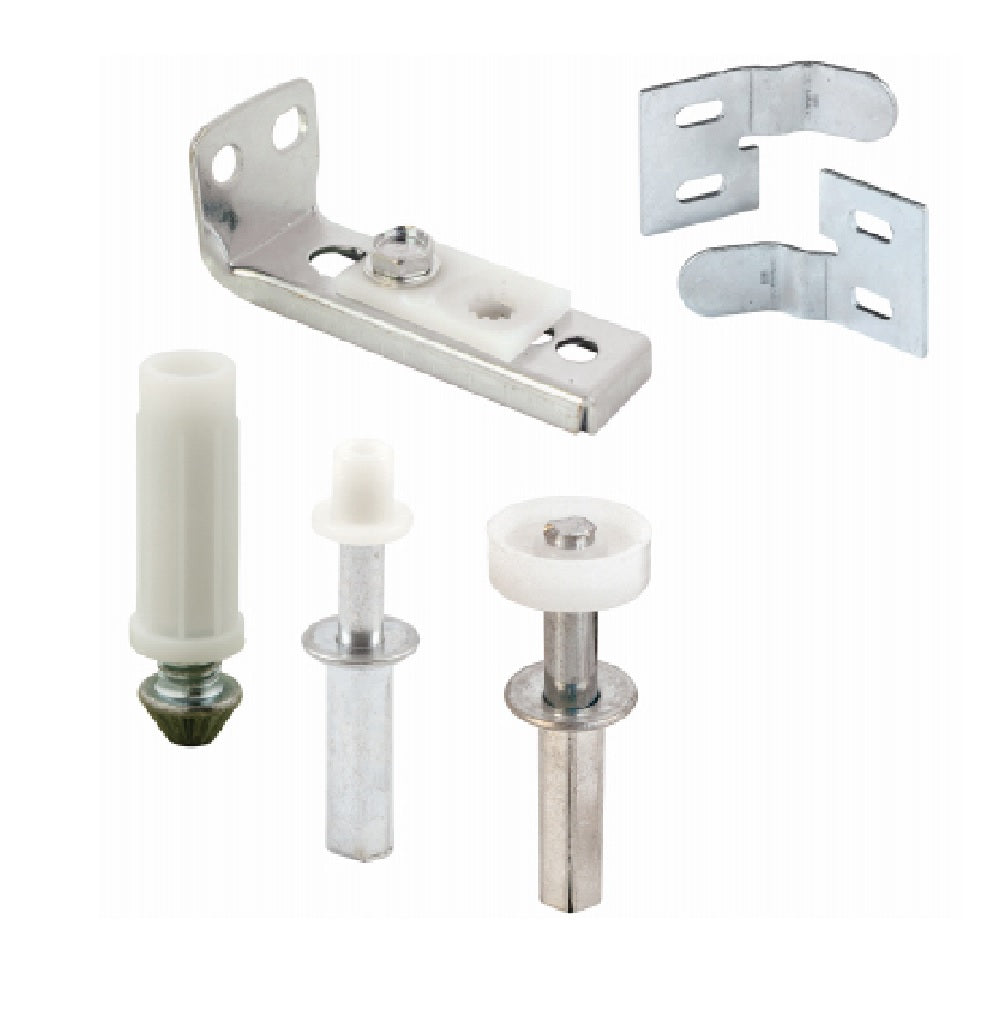

- One N-6538 pair of non-handed bi-fold door surface aligners to keep the doors aligned and tightly closed
- Includes one Prime-Line part N 6545 bi-fold top mount pivot which has a 7/16 inch diameter spring-loaded steel base and 3/8 inch diameter plastic cap
- One spring-loaded Prime-Line part N-6544 bi-fold door top roller guide with a 7/8in. plastic wheel and a 7/16 inch diam. spring-loaded steel base
- One Prime-Line part N-6696 bottom pivot constructed of a 7/16 inch diameter plastic base with a height-adjusting grooved cone-shaped steel pivot
- Includes one Prime-Line part N-6543 jamb and floor mount pivot bracket, that is a steel base with an adjustable self-lubricating plastic bushing
- Installation fasteners included
- A Phillips head screwdriver is required for installation
Specifications
MFR:
N 7530
SKU:
12629526
UPC:
049793275301
Brand:
Prime Line
Length:
2
Width:
4
Height:
8
Attachment:
