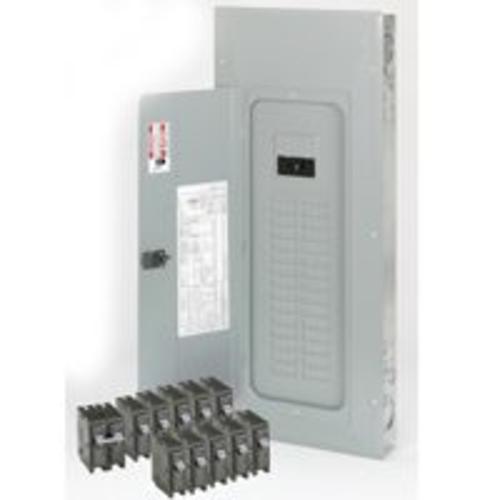

Cutler Hammer BR3040B200V2 Main Breaker Load Center, 200 Amp
Cutler Hammer BR3040B200V2 Main Breaker Load Center, 200 Amp
$229.81
SKU: 11899059
MFG: BR3040B200V2
Description
Galvanized steel enclosure. Single phase, 3 wire, insulated/bondable split neutral, 30 (1") spaces, 40 poles, 120/240 volt. Main breaker type BW at 25,000 AIC. Ground bar kit (necessary for sub-feeding) sold separately. Tin-plated aluminum bus bar. Twin neutral with non-removable cross bus. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #2 - 300 kcmil wire range. Electrostatic powder coat, baked urethane painted. Rotates 180 degrees for bottom feed; orientation of main breaker handle consistent with NEC 240-81 requirements because it operates horizontally. G1 Box - 14-5/16" width x 34-1/8" height x 3-7/8" depth. UL listed.
Highlights:
- Type Br - residential
- Indoor - top/bottom feed
- Surface/flush mount - G60
- 10-Br120 1-Br230 breakers included
- Amp rating: 200
Specifications
MFR:
BR3040B200V2
SKU:
11899059
UPC:
782114894460
Brand:
Cutler Hammer
Length:
16
Width:
34
Height:
5
