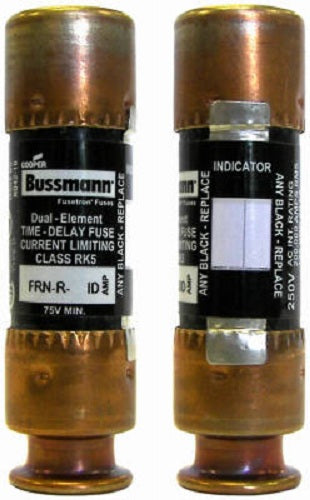

Cooper Bussmann BP/FRN-R-30ID Fusetron Dual Element Indicating Fuse, 3
Cooper Bussmann BP/FRN-R-30ID Fusetron Dual Element Indicating Fuse, 30A, 2-Pack
$26.99
SKU: 10880983
MFG: BP/FRN-R-30ID
Description
Provides motor overload, ground fault and short-circuit protection. Helps protect motors against burnout from single-phasing on three-phase systems. Simplifies and improves blackout prevention (selective coordination). Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short-circuit and overload protection. The overload element provides protection against low level overcurrent of overloads and will hold an overload which is five times the amp rating of the fuse for a minimum of eight seconds.
- 2 pack
- 30 amps
- 250 volts
- Fusetron dual-element, time-delay – 8 seconds (minimum) at 500% rated current
- Current limiting class RK5 fuse
- Label darkens if fuse has opened
- Applications, AC power distribution system mains, feeders & branch circuits, motors & motor branch circuits, transformers
- Other inductive loads, lighting, heating & other non-inductive loads
- UL listed
- Dimensions: 2.375"(L) x 1.375"(W) x 0.25"(H)
- Carded.
Specifications
MFR:
BP/FRN-R-30ID
SKU:
10880983
UPC:
051712237123
Brand:
Cooper Bussmann
Length:
10
Width:
7
Height:
1
