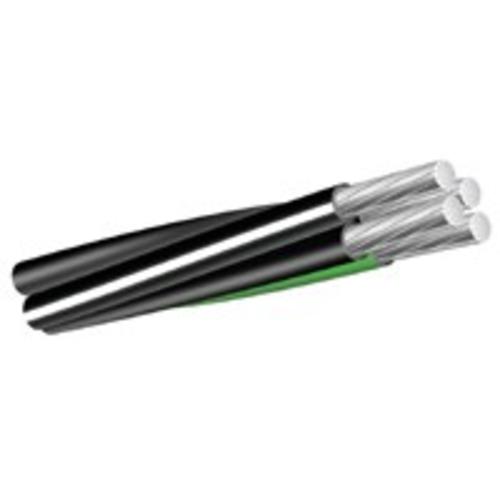

Southwire 4/04/02/04X500MBL Aluminum Mobile Home Feeder Cable, 500
Southwire 4/04/02/04X500MBL Aluminum Mobile Home Feeder Cable, 500'
$1,945.10
SKU: 11978106
MFG: 4/04/02/04X500MBL
Description
Southwire mobile home feeder is intended for the connection of mobile homes to a supply of electricity where permanent wiring is required as specified in the 2011 National Electrical Code. Suitable for direct burial in earth at conductor temperatures not to exceed 90°C. Voltage rating is 600 volts.
Highlights:-
- Aluminum
- 200 Amp, 600 Volt
- Dia Mils: 1540
- 4/0-4/0-2/0-4
- 500' Spool
- Used to connect mobile homes to a supply of electricity where permanent wiring is required as specific by NEC Article 550-24 and complies with NEC Article 338-1
- Compact stranded 8000 series aluminum alloy
- Cross-linked, polyethylene (XLPE)
- Types USE-2/RHH/RH, W-2
- Approved for direct burial up to 90 degrees Celsius
- Quadruplex cable conductor construction
- UL Listed
Specifications:-
- Southwire's Mobile Home Feeder complies with:
- UL Standard 44
- UL Standard 854
- Federal Specification A-A-59544
- National Electrical Code/NFPA 70, 2011 Edition
- RoHS/REACH
Construction:-
Southwire mobile home feeder consists of four quadruplexed type RHH or RHW-2 or USE-2 AlumaFlex AA-8000 series aluminum alloy compacted conductors. The cable contains 2 triple extruded phase conductors, a white striped neutral conductor and a green grounding conductor to eliminate the need for field marking per the National Electrical Code. The insulation is sunlight resistant.
Specifications
MFR:
4/04/02/04X500MBL
SKU:
11978106
UPC:
032886579097
Brand:
Southwire
Length:
36
Width:
36
Height:
25
