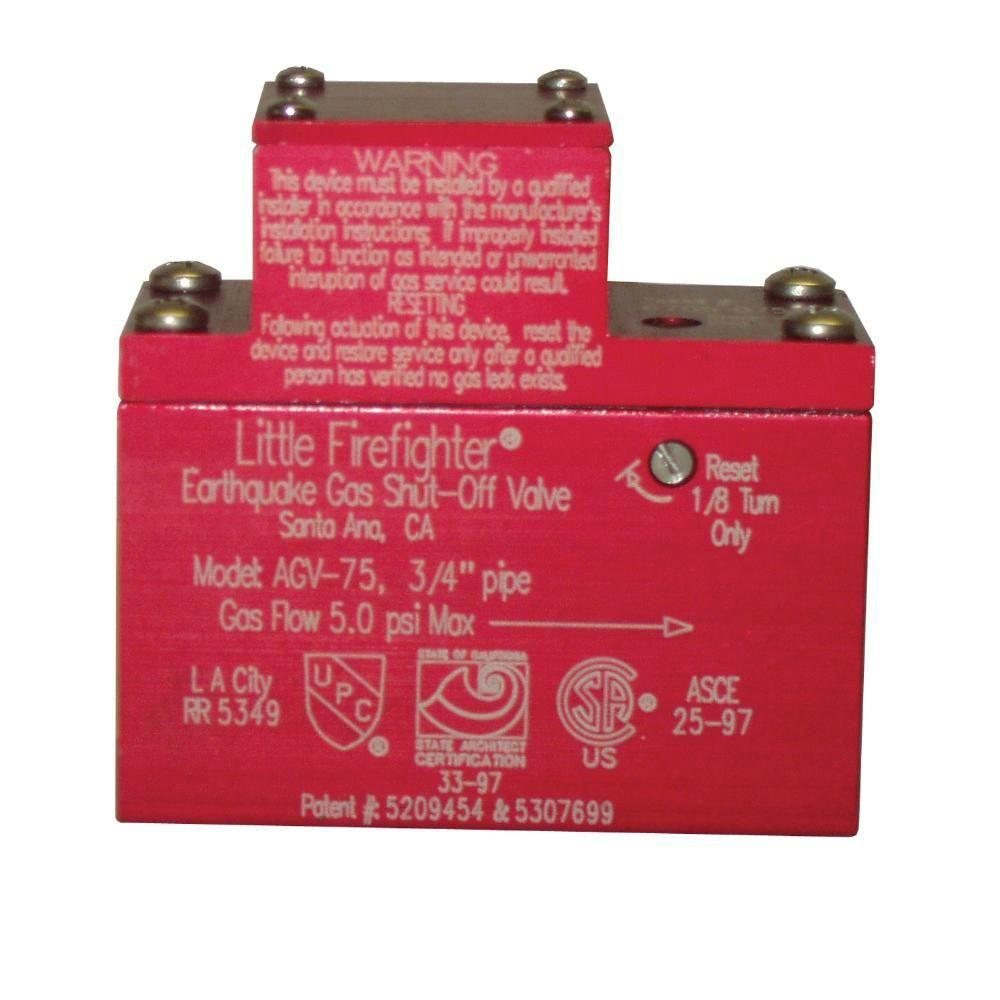

Little Firefighter 0959440 Earthquake Gas Safety Valve, Horizontal, 3/4", #AGV-75

$210.23

Created with Sketch.
Shipping charges calculated at checkout.
1

Request a Bulk Quote

Thank you for your quote request. We will be in touch.

SKU: 12296481
MFG: 0959440

Description

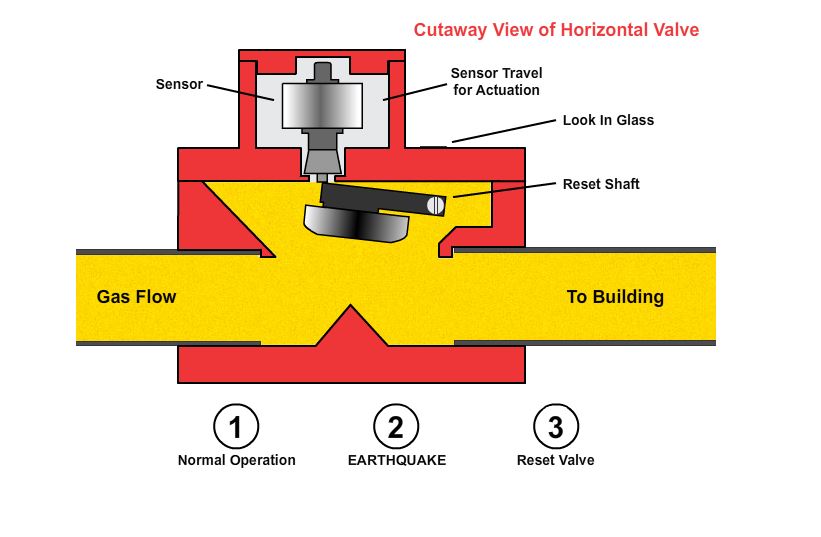

Little Firefighter Gas Safety Valve is designed to shut off the flow of natural gas to your home in the event of an earthquake. It was developed to save lives and reduce property destruction from earthquake related gas fires. The valve activates and automatically shuts off the gas supply when triggered by a 5.4 magnitude seismic event. Each valve is UL Laboratory tested and approved and meets or exceeds the requirements of the City of Los Angeles.

  • Firefighter gas safety valve
  • Automatically shuts off gas when triggered by a 5.4 magnitude seismic event
  • Designed for horizontal mounting
  • Complies with all state, city, and laboratory testing requirements
  • Most compact state-of-the-art design
  • Manual reset available on both sides.

Specifications:

  • Pipe Size: 3/4"
  • Max. Pressure: 5 psi
  • 0.5"W.C BTU/HRx1000: 692
  • 1.0"W.C BTU/HRx1000: 977
  • Effective Pipe Length: 4"
  • Cv Value: 14.8

Specifications

MFR:
0959440
SKU:
12296481
UPC:
098268547030
Brand:
Little Firefighter
Length:
7
Width:
9
Height:
3
Attachment:
