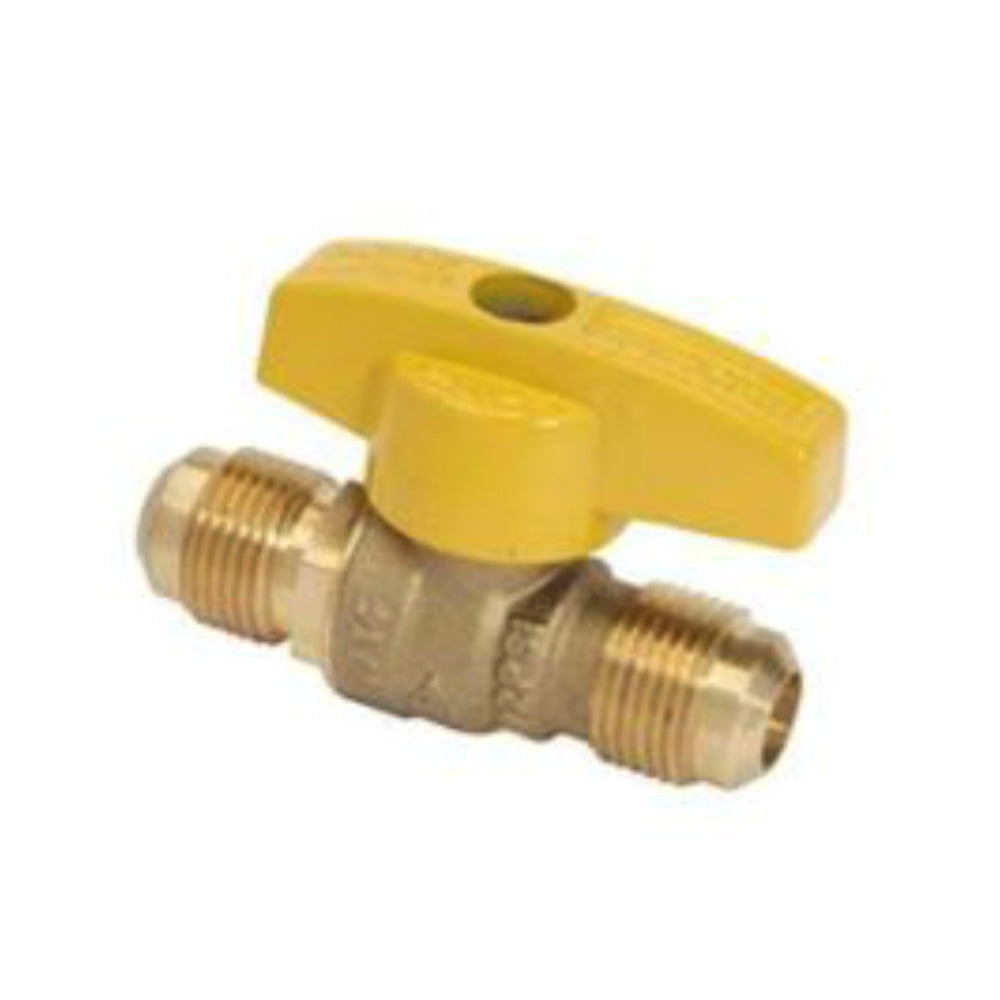

BrassCraft TBVF8 Gas Ball Valve, 1/2" OD Flare x 1/2" OD Flare
BrassCraft TBVF8 Gas Ball Valve, 1/2" OD Flare x 1/2" OD Flare
$13.88
SKU: 11884767
MFG: TBVF8
Description
Highlights:
- Size: 1/2"
- Inletto Outlet Length: 2.74"
- Overall Height: 1.45"
- Overall Length: 2.74"
- Body Material: Forged Brass
- End Connection: Flared
- Handle Material: Aluminum
- Pressure Rating: 5 Psi
- Softgoodsmaterial: Viton O-Ring
- Standards: ANSI Z21.15 CSA 9.1, ANSI/ASME B16.33, ANSI/ASME B16.44, CSA-US/C 3-88, CSA-US/C CR91-002, CSA 3.16
- Temperature Rating: 32 - 125 Deg F
- Topof Handleto Inlet Center: 1.45"
- Trim Material: PTFE Seat, Extruded Brass Stem, Forged Brass Retainer, Zinc Plated Steel Screw
- Type: Quarter Turn
- Special Features: Chromium Plated Brass Ball, Lever Handle Actuator
- Quarter turn operation provides easy on and off flow control
- Ptfe seats assure a tight seal and easy on and off operation even after long periods of inactivity
- Blow-out-proof stem assembled from the inside with double o-rings to ensure safe, reliable performance
- 100% leak tested
- Forged brass body eliminates pinhole leaks commonly associated with cast products
- Comfort-fit grip handle features an exclusive integration of the ‘T’ and lever handle designs
- Large wrench flats make installation easier 100000 Btu/hr capacity
Specifications
MFR:
TBVF8
SKU:
11884767
UPC:
026613099323
Brand:
BrassCraft
Length:
4
Width:
3
Height:
2
